100% Pure Juice Aseptic Carton Filling Machine with 23kw Power Consumption and 3m3/min Air Consumption
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 충전 정확도 | 0.5-1% | 패킹 능력 | 1000-3000CPH |
|---|---|---|---|
| 전원공급장치 | 380V/50HZ 또는 주문 제작됩니다 | 기계 크기 | 4830mm×2150mm×3780mm |
| 기계 | SUS304 | 캡 크기 | Ø26-Ø36, 1개의 기계를 위한 1개의 크기 또는 주문을 받아서 만드는 |
| 채워 있는 포맷 | 1000ml 프리즈마, 정사각형 또는 기초 | 제어 | PLC |
| 강조하다 | 100% Pure Juice Aseptic Carton Filling Machine,23kw Power Consumption Aseptic Carton Filling Machine,3m3/min Air Consumption Aseptic Carton Filling Machine |
||
제품 설명

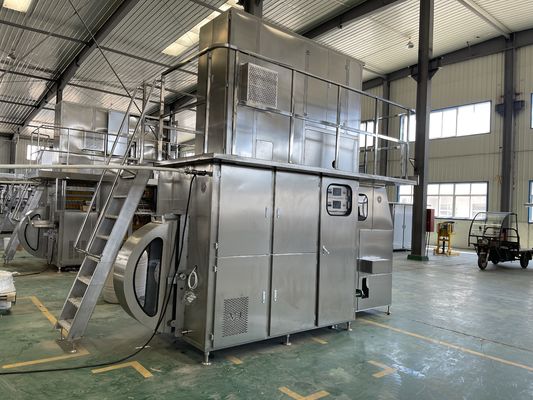

Turn Key Project Aseptic Carton Filling Machine with 23kw Power Consumption and 3m³/min Air Consumption
1000ml Gable Carton Aseptic Filling Machine For 100% Pure Juice
The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging material under aseptic conditions, while also completing package sealing and forming to extend product shelf life. This advanced equipment incorporates "triple sterility guarantee" technology, ensuring superior aseptic performance, production stability, and automation levels.
Ideal for pure beverages including milk, goat milk, soy-milk, and vegetable protein drinks, this machine integrates mechanical, electrical, and pneumatic components with 6 national patents. It features a simple structure, easy maintenance, and uses premium international control components for reliable operation with low energy consumption.
Key Features
- Advanced PLC-controlled automation for paper feeding, sterilization, filling, and forming processes
- High reliability with multi-point sensing alarm control and servo correction systems
- Safe sterilization technology ensuring pure milk packaging safety
- User-friendly human-machine interface for intuitive operation
- Premium components from globally recognized manufacturers
- Compatible with multi-layer composite packaging materials
Technical Specifications
| No | Parameter | Value |
|---|---|---|
| 1 | Standard capacity | 1L Square type carton |
| 2 | Brick cartons specifications | Customized to your requirements |
| 3 | Packaging material | 7-layer laminated composite paper |
| 4 | Capacity | 1000-3000 cartons/h |
| 5 | Operators required | 2 |
| 6 | Dimensions | 4830*2150*3780mm |
| 7 | Weight | 2000Kg |
| 8 | Power consumption | 20KW |
| 9 | Air consumption | 3m³/min |
| 10 | Working pressure | 0.8-1MPa |
| 11 | Cooling water | Clean soft water |
| 12 | H2O2 consumption | 0.2L/per shift |
| 13 | H2O2 concentration | 35% |
Applications
This machine fills various liquid beverages including soy milk, plant milk, yogurt, fruit/vegetable juice, and plant protein into environmentally friendly paper-aluminum-plastic composite cartons. Available configurations accommodate multiple shapes and capacities from 125ml to 1000ml.
Support & Services
Our comprehensive support includes installation assistance, maintenance checks, software updates, and troubleshooting. We provide operator training and dedicated technical support to maximize machine uptime and performance.
Certifications
Frequently Asked Questions
How to find a suitable packing machine for my product?
Provide details about your product type, required package size/weight, and machine specifications. We'll recommend the optimal solution.
Is engineer available to serve overseas?
Yes, with travel costs covered by the client. We provide detailed installation videos and remote support.
How can we verify machine quality before delivery?
We provide pre-delivery photos/videos and accommodate third-party inspections.
What payment and delivery terms are available?
Standard process includes contract signing, 30% deposit, production, testing, inspection, balance payment, and shipping arrangement.
