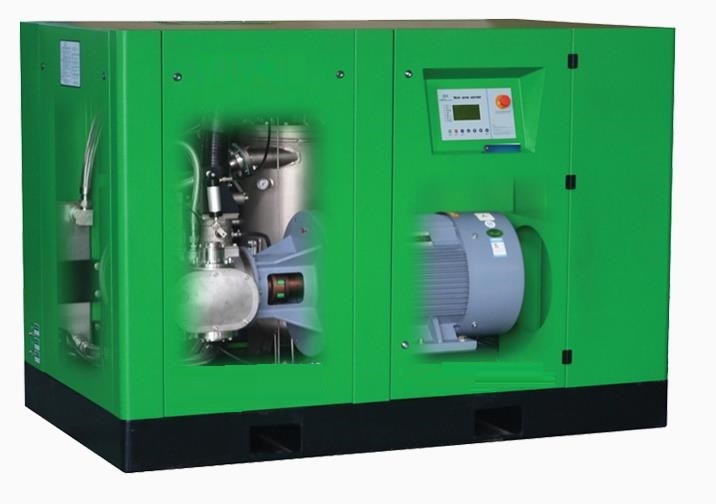

12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OEM |
| 인증 | CE |
| 모델 번호 | CHIC-08BF/12.5 |
| 최소 주문 수량 | 500 |
| 포장 세부 사항 | 사이즈(L×W×H)를 싸는 것 :1350mm×774mm×1150mm |
| 배달 시간 | 7일입니다 |
| 공급 능력 | 500PCS/DAY |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | CHIC-08BF/12.5 12.5Bar 직접적 드리븐은 회전식 오일프리 스크류 공기 압축기를 사용했습니다 | 항공 투하 | 1.02m3/min |
|---|---|---|---|
| 전기 | 3상 380/60 또는 440/60 (V//Hz) | 압력 | 12.5Bar |
| 소음 수준 | 58DB | 힘 | 10HP/7.5KW |
| N.weigh | 500KGS | 색 | 그린 |
| 강조하다 | 12.5Bar dry screw air compressor,R1 inch dry screw air compressor,12.5Bar industrial screw compressor |
||
제품 설명
accurate exhaust pressure. Within the flow range, the pressure fluctuation range of CM/PV variable frequency water-lubricated screw compressor can reach 0.01MPa.
Third, avoid current omen, CHIC converter start is more stable than the commonly known soft start, completely avoid current peak, no impact on the power grid.
CHIC series variable frequency water-lubricated oil-free screw compressor has the function of variable frequency switching. According to the size of gas free choice, to achieve the minimum cost of electricity.
CHIC screw compressor adopts frequency conversion motor, with wide speed range, strong lower torque reduction and good stability.
Technical parameters
| Model | CHIC-08BF/12.5 | ||
| Power | 15HP/11KW | ||
| FAD: (M3/MIN) | 1.02 | ||
| Pressure | 12.5 bar | ||
| Cooling | Air-cooling | ||
| Noise level | 58dB | ||
| Drive method | Direct drive type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
| Air outlet: Pipe diameter(inch) | R1 | ||
| delivery | 15-20 days | ||
| Dimension | 1350MM*774MM*1150MM | ||
| Net weight | 580KGS | ||
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
