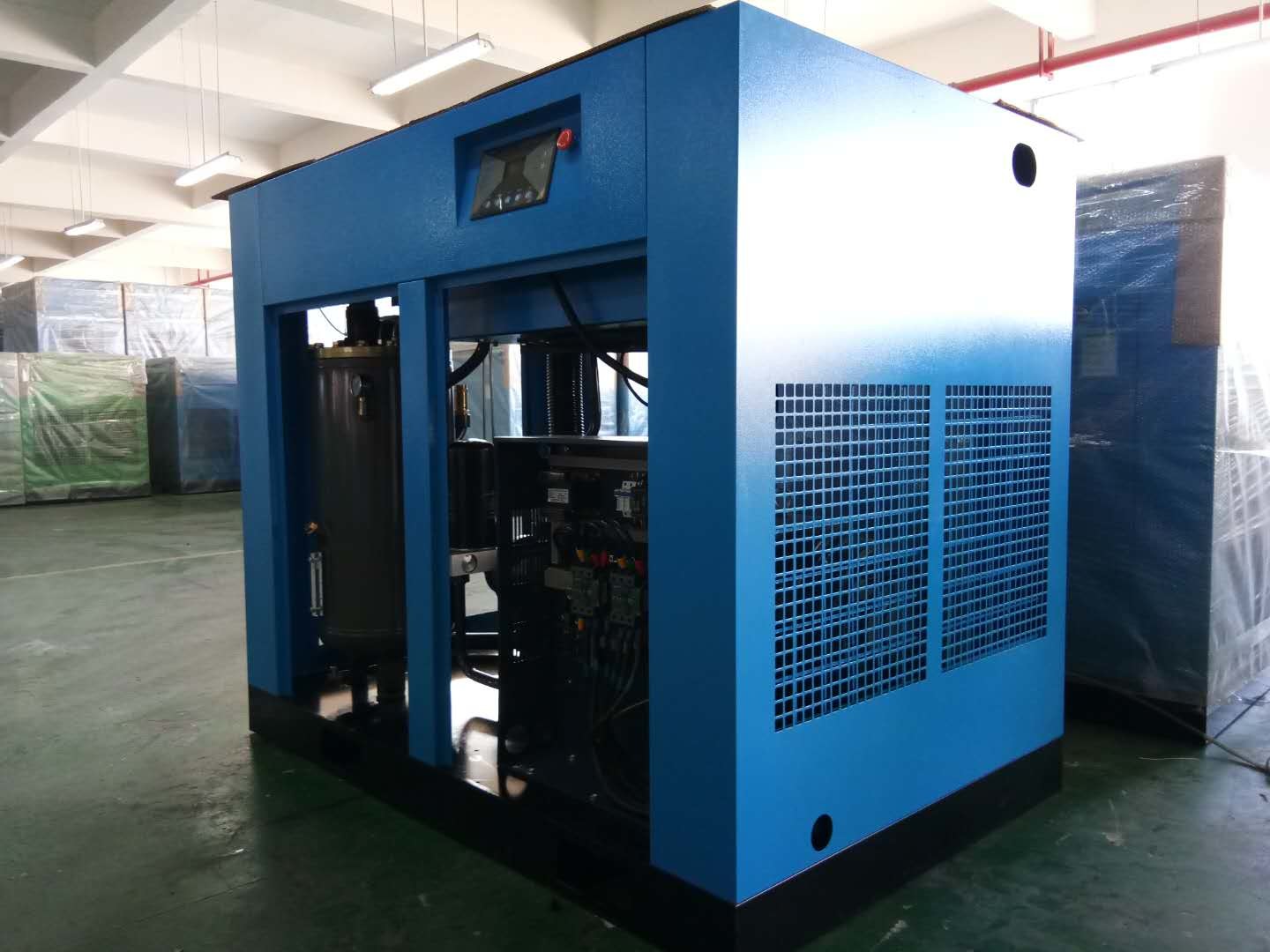

Industrial Rotary Screw Air Compressor 55kw 75 Hp 9.8m3 Min
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OEM |
| 인증 | CE |
| 모델 번호 | CHIC-75A |
| 최소 주문 수량 | 500 |
| 가격 | USD 40-45 |
| 포장 세부 사항 | 사이즈(L×W×H)를 싸는 것 :1150mm×1550mm×1660mm |
| 배달 시간 | 7일입니다 |
| 공급 능력 | 500PCS/DAY |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 55 kw 75 에이치피 380V CHIC-75A 직접적 주도 사용된 회전식 스크류 공기 압축기 | 항공 투하 | 9.8m3/min |
|---|---|---|---|
| 전기 | 3상 380/60 또는 440/60 (V//Hz) | 압력 | 8bar |
| 소음 수준 | 70±2dB | 힘 | 75HP/55KW |
| N.weigh | 1000kgs | 색 | 청색 |
| 강조하다 | 75hp Screw Air Compressor,55kw Screw Air Compressor,55kw 75 hp screw compressor |
||
제품 설명
cooler:Aluminum fin structure, heat exchange effect is good, reduce the temperature of the whole machine, ensure the air compressor working temperature tends to a stable range, unique structure, to meet all kinds of environment.
oil filter:High precision glass fiber oil filter, ensure the lubricating oil into the main engine crystallization, prolong the service life and maintenance cycle of the main engine.
oil-water separator:A specially designed oil and gas separation system ensures a lower pressure differential, thus reducing energy consumption. With advanced three-stage oil and gas separation, the oil content is controlled under 3ppm to ensure the high quality of compressed air.

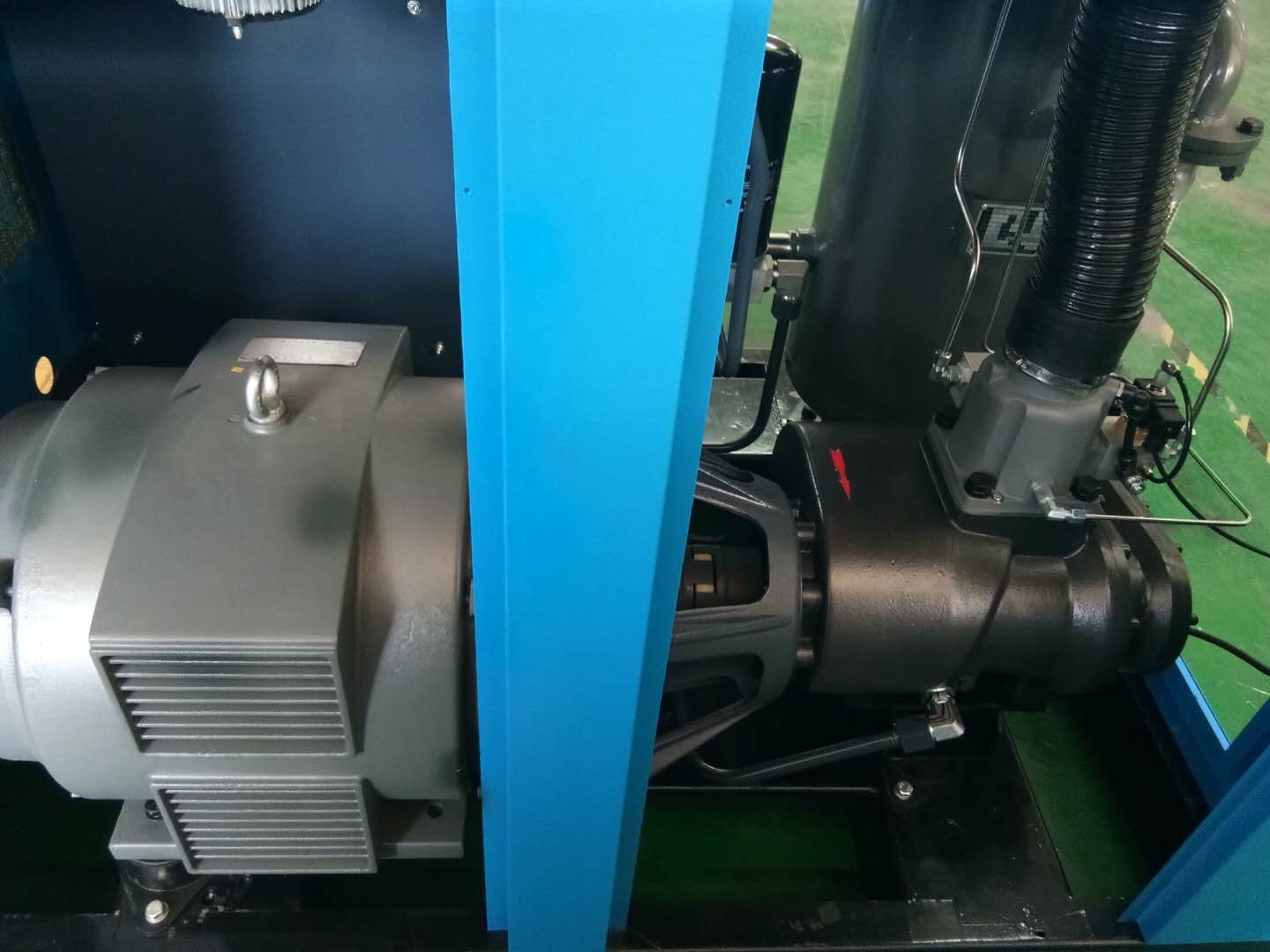

air end:Professional customized compression air end, improve the volume efficiency, reduce bearing load, improve the service life of the air end.
inverter:Advanced frequency conversion control system, high efficiency frequency converter, small start impact, avoid start overload.
fan:Centrifugal fan, low noise, high wind pressure, exhaust cooling, good cooling effect.
air filter:Original imported filter material, high efficiency triple air separator, effectively keep the internal cleanliness of the system.
motor:Professional customized high-efficiency permanent magnet motor, protection level up to IP54.
inlet valve:Unique intake channel design, intake adjustment range 0-100%, capacity adjustment valve adjustment, small pressure loss, stable action, long service life.
Technical parameters
| Model | CHIC-75A | ||
| Power | 75HP/55KW | ||
| FAD: (M3/MIN) | 9.8 | ||
| Pressure | 8 bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 36L | ||
| Noise level | 75±2dB | ||
| Drive method | Direct drive type | ||
| Discharge temperature | Environment Temp+15℃-18℃ | ||
| Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
| Starting method | Y-△ starter | ||
| Air outlet: Pipe diameter(inch) |
G2″ |
||
| Oil content of air | <2ppm | ||
| Dimension | 1150MM*1550MM*1660MM | ||
| Net weight | 1000KGS | ||

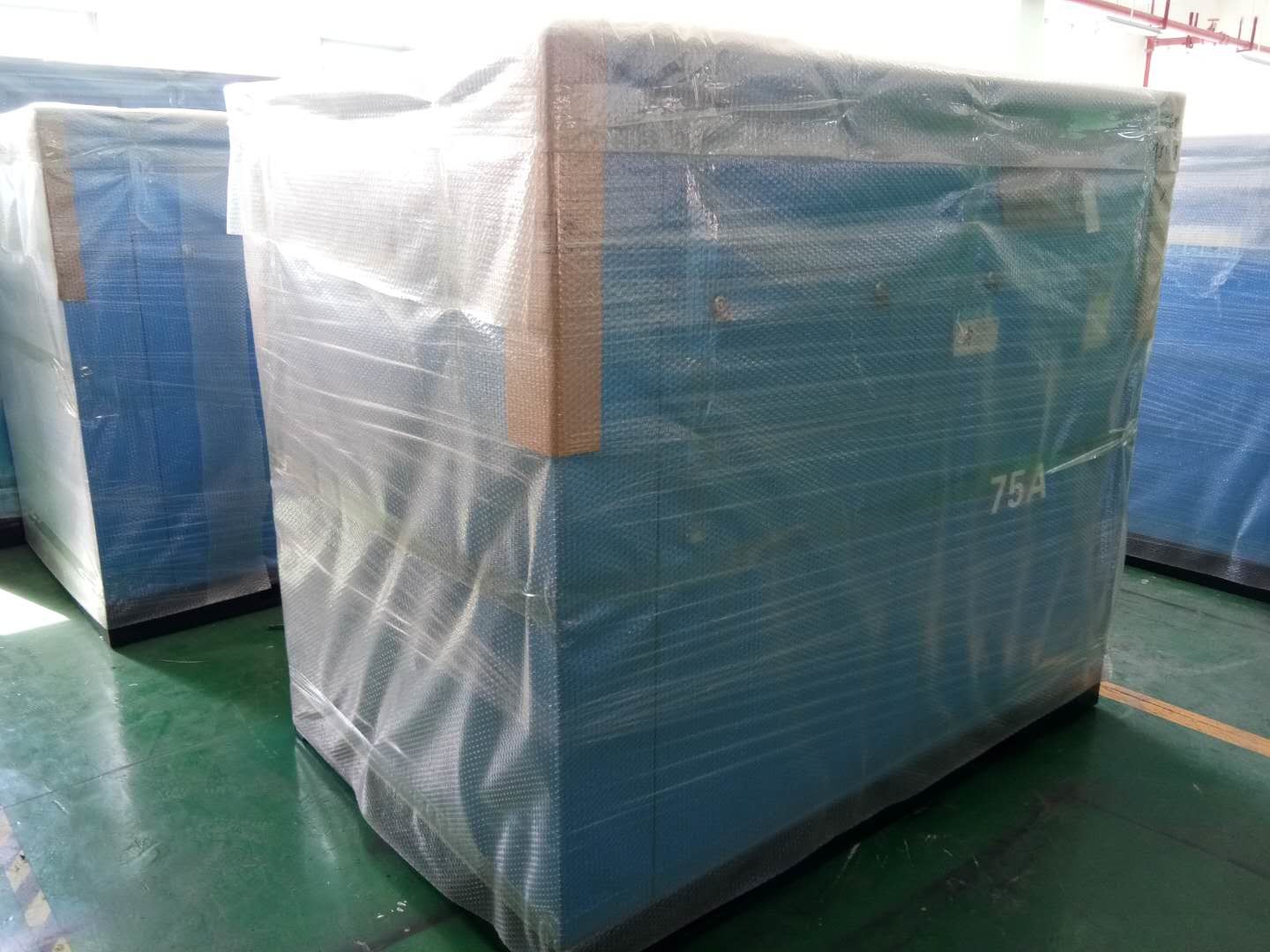

Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
