45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OEM |
| 인증 | CE |
| 모델 번호 | CHIC-60A |
| 최소 주문 수량 | 500 |
| 가격 | USD 40-45 |
| 포장 세부 사항 | 사이즈(L×W×H)를 싸는 것 :1000mm×1450mm×1470mm |
| 배달 시간 | 7일입니다 |
| 공급 능력 | 500PCS/DAY |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 45 kw 60 에이치피 CHIC-60A는 주도 사용된 회전 스크루우 공기 압축기 8Bar를 지시합니다 | 항공 투하 | 7.5m3/min |
|---|---|---|---|
| 전기 | 3상 380/60 또는 440/60 (V//Hz) | 압력 | 8bar |
| 소음 수준 | 70±2dB | 힘 | 60HP/45KW |
| N.weigh | 900kgs | 색 | 청색 |
| 강조하다 | 45kw Screw Air Compressor,25UM Screw Air Compressor,45kw helical screw compressor |
||
제품 설명
OIL &GAS SEPARATOR
Makes the oil content less than or equal to 3ppm
Oil FILTER
The filter fineness is 25UM , which can guarantee the clean lubricating oil supply to the main system and improve the service life of the air end
REFRIGERATED AIR DRYER
High efficiency energy saving with high presicion pressure gauge

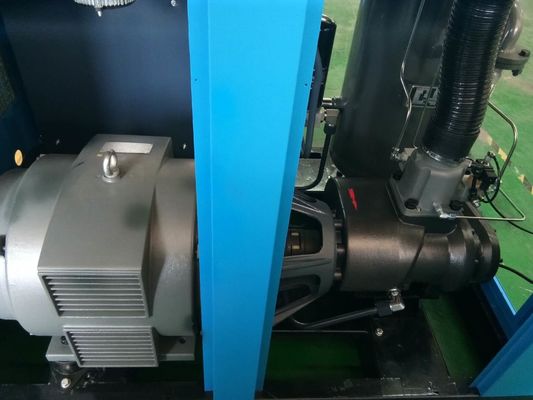

Permanent Magnet synchronous motor
NO electirc excitation no fundamental wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor
Technical parameters
| Model | CHIC-60A | ||
| Power | 60HP/45KW | ||
| FAD: (M3/MIN) | 7.5 | ||
| Pressure | 8 bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 20L | ||
| Noise level | 68±2dB | ||
| Drive method | Direct drive type | ||
| Discharge temperature | Environment Temp+15℃-18℃ | ||
| Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
| Starting method | Y-△ starter | ||
| Air outlet: Pipe diameter(inch) |
G1/2″ |
||
| Oil content of air | <2ppm | ||
| Dimension | 1000MM*1450MM*1470MM | ||
| Net weight | 900KGS | ||

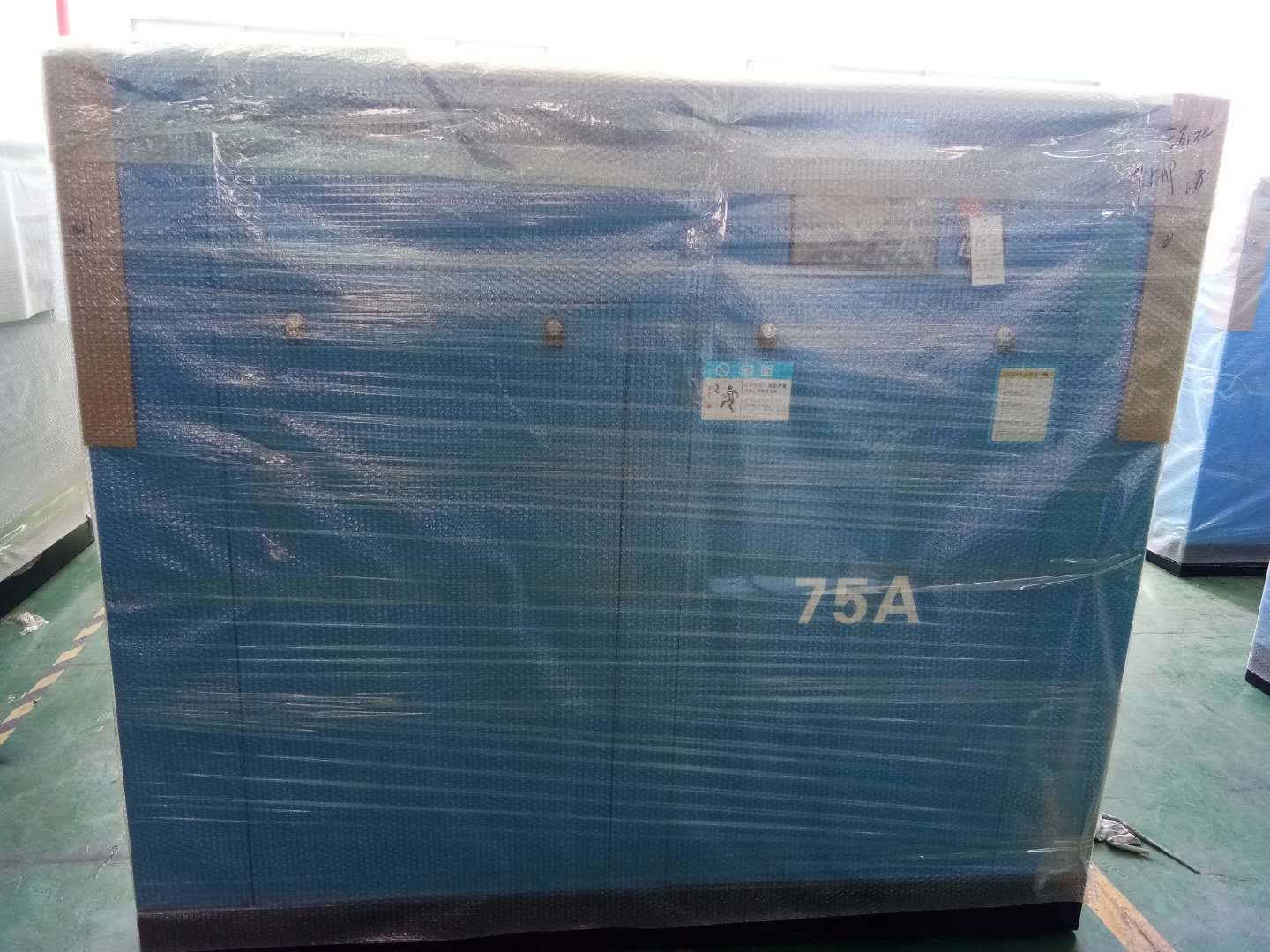

Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
