Direct Driven Used 11kw 15hp Screw Drive Air Compressor
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OEM |
| 인증 | CE |
| 모델 번호 | CHIC-15A |
| 최소 주문 수량 | 500 |
| 가격 | USD 40-45 |
| 포장 세부 사항 | 사이즈(L×W×H)를 싸는 것 :800mm×600mm×1040mm |
| 배달 시간 | 7일입니다 |
| 공급 능력 | 500PCS/DAY |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 11 kw 15 에이치피 CHIC-15A는 주도 사용된 스크류 공기 압축기를 지시합니다 | 항공 투하 | 1.6m3/min |
|---|---|---|---|
| 전기 | 3상 220/60 또는 440/60 (V//Hz) | 압력 | 8bar |
| 소음 수준 | 62±2dB | 힘 | 15hp/11KW |
| N.weigh | 470kgs | 색 | 청색 |
| 강조하다 | 11kw screw drive air compressor,15hp screw drive air compressor,15hp screw compressor |
||
제품 설명
OIL &GAS SEPARATOR
Makes the oil content less than or equal to 3ppm
Cooler fan
High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period
EXHAUST
The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space
High performance frequency converter
Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery
NO electirc excitation no fundamental wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor
Technical parameters
| Model | CHIC-15A | ||
| Power | 15HP/11KW | ||
| FAD: (M3/MIN) | 1.6 | ||
| Pressure | 8 bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 14L | ||
| Noise level | 65±2dB | ||
| Drive method | Driect driven type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 220/60 or 440/60 (V//Hz) | ||
| Starting method | Y-△ starter | ||
| Air outlet: Pipe diameter(inch) | R3/4" | ||
| Material | contact with us | ||
| delivery | 15-20 days | ||
| Oil content of air | <2ppm | ||
| Dimension | 1030MM*850MM*1280MM | ||
| Net weight | 470KGS | ||

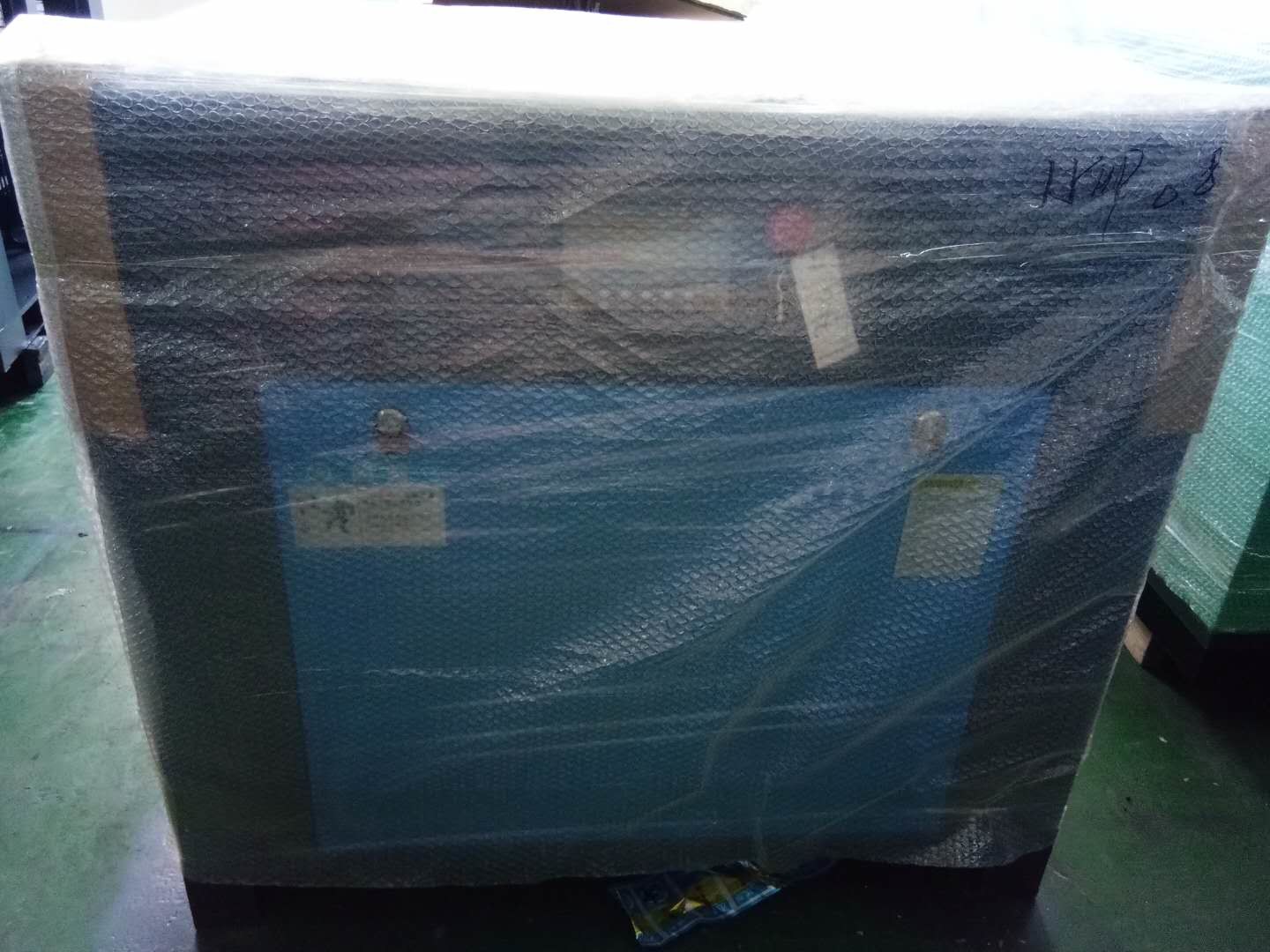

Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
