7.5 Hp Rotary Screw Air Compressor 440V 1.1m3 Min 214KGS
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OEM |
| 인증 | CE |
| 모델 번호 | CHIC-10A |
| 최소 주문 수량 | 500 |
| 가격 | USD 40-45 |
| 포장 세부 사항 | 사이즈(L×W×H)를 싸는 것 :800mm×600mm×1040mm |
| 배달 시간 | 7일입니다 |
| 공급 능력 | 500PCS/DAY |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | 7.5 kw 10 에이치피 CHIC-10A는 주도 사용된 스크류 공기 압축기를 지시합니다 | 항공 투하 | 1.1m3/min |
|---|---|---|---|
| 전기 | 3상 220/60 또는 440/60 (V//Hz) | 압력 | 8bar |
| 소음 수준 | 62±2dB | 힘 | 10HP/7.5KW |
| N.weigh | 214KGS | ||
| 강조하다 | 440V Screw Air Compressor,7.5hp Screw Air Compressor,7.5 hp rotary screw compressor |
||
제품 설명

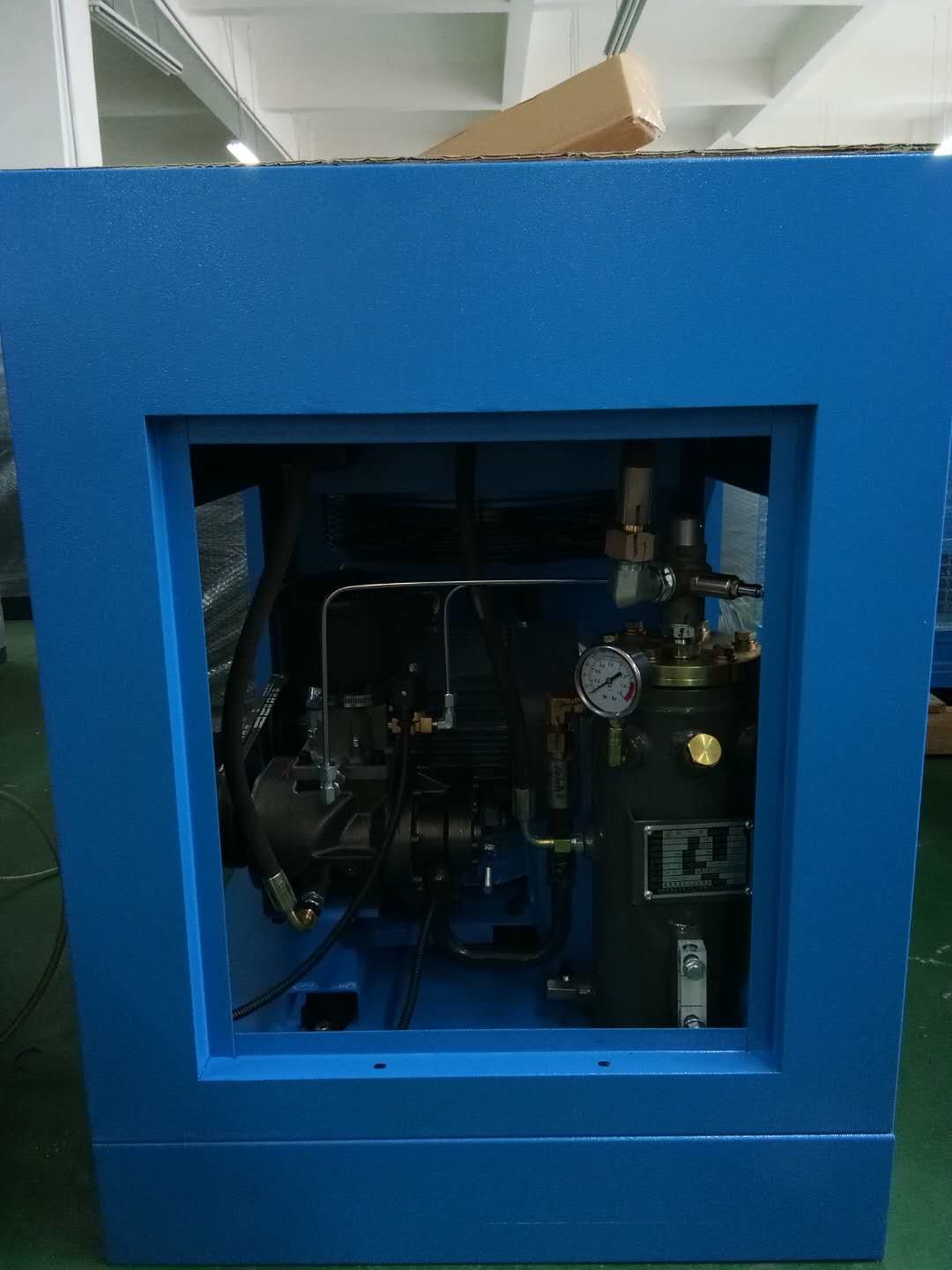

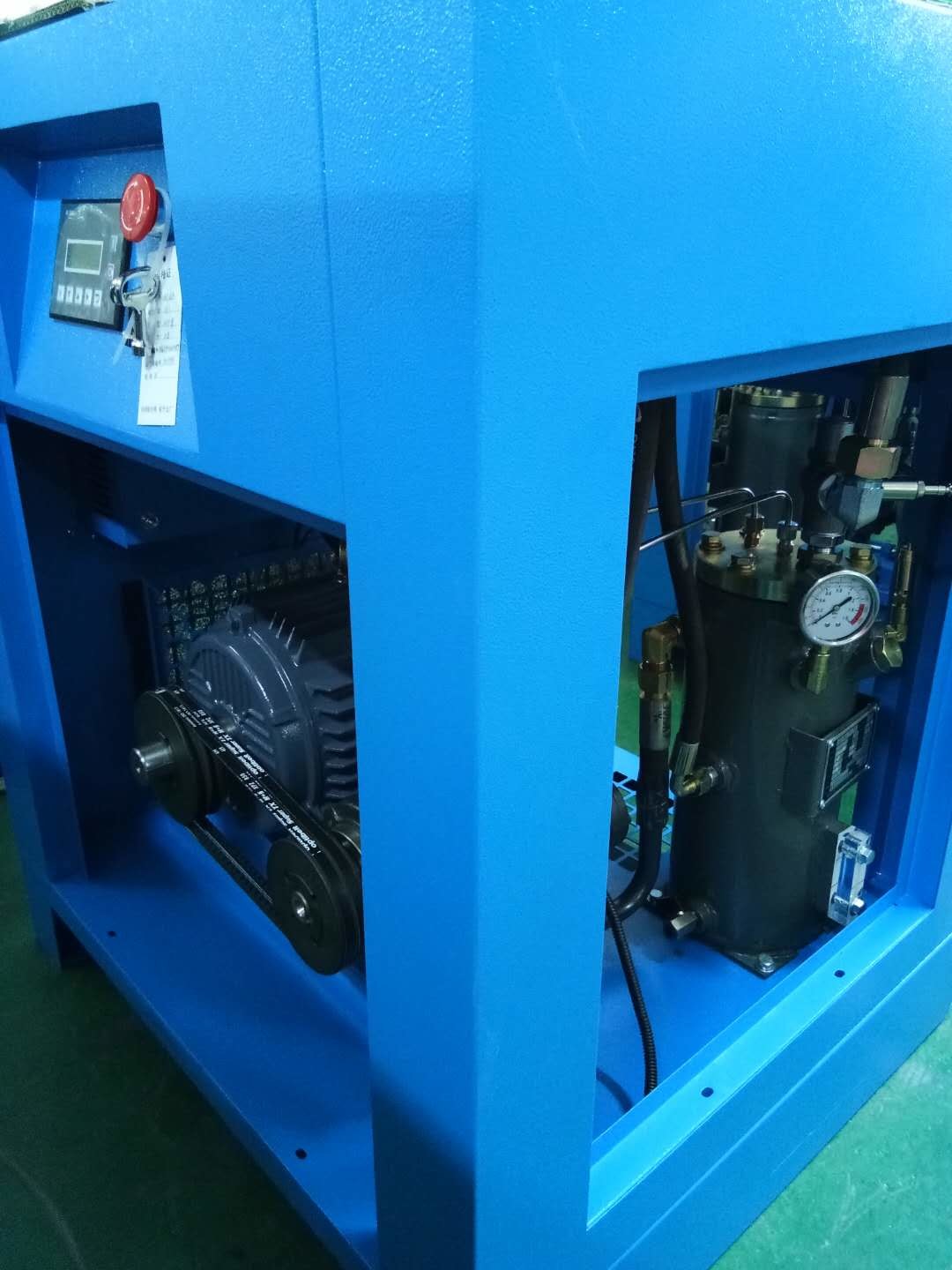

7.5kw 10hp CHIC-10A Direct Driven Used Screw Air Compressor
Product Description
OIL &GAS SEPARATOR
Makes the oil content less than or equal to 3ppm
Cooler fan
High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period
EXHAUST
The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space
High performance frequency converter
Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery
PLC
7-inch color screen ,touch operation be equipped with active protection alarming , maintenance reminding and automatic 24-hour unattended operation
Oil FILTER
The filter fineness is 25UM , which can guarantee the clean lubricating oil supply to the main system and improve the service life of the air end
REFRIGERATED AIR DRYER
High efficiency energy saving with high presicion pressure gauge
Permanent Magnet synchronous motor
NO electirc excitation no fundamental wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor
Technical parameters
| Model | CHIC-10 | ||
| Power | 10HP/7.5KW | ||
| FAD: (M3/MIN) | 1.1 | ||
| Pressure | 8bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 10L | ||
| Noise level | 62±2dB | ||
| Drive method | Driect driven type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 220/60 or 440/60 (V//Hz) | ||
| Starting method | straight | ||
| Air outlet: Pipe diameter(inch) | R 3/4" | ||
| Oil content of air | <2ppm | ||
| Dimension | 800MM*600MM*1040MM | ||
| Net weight | 214KGS | ||

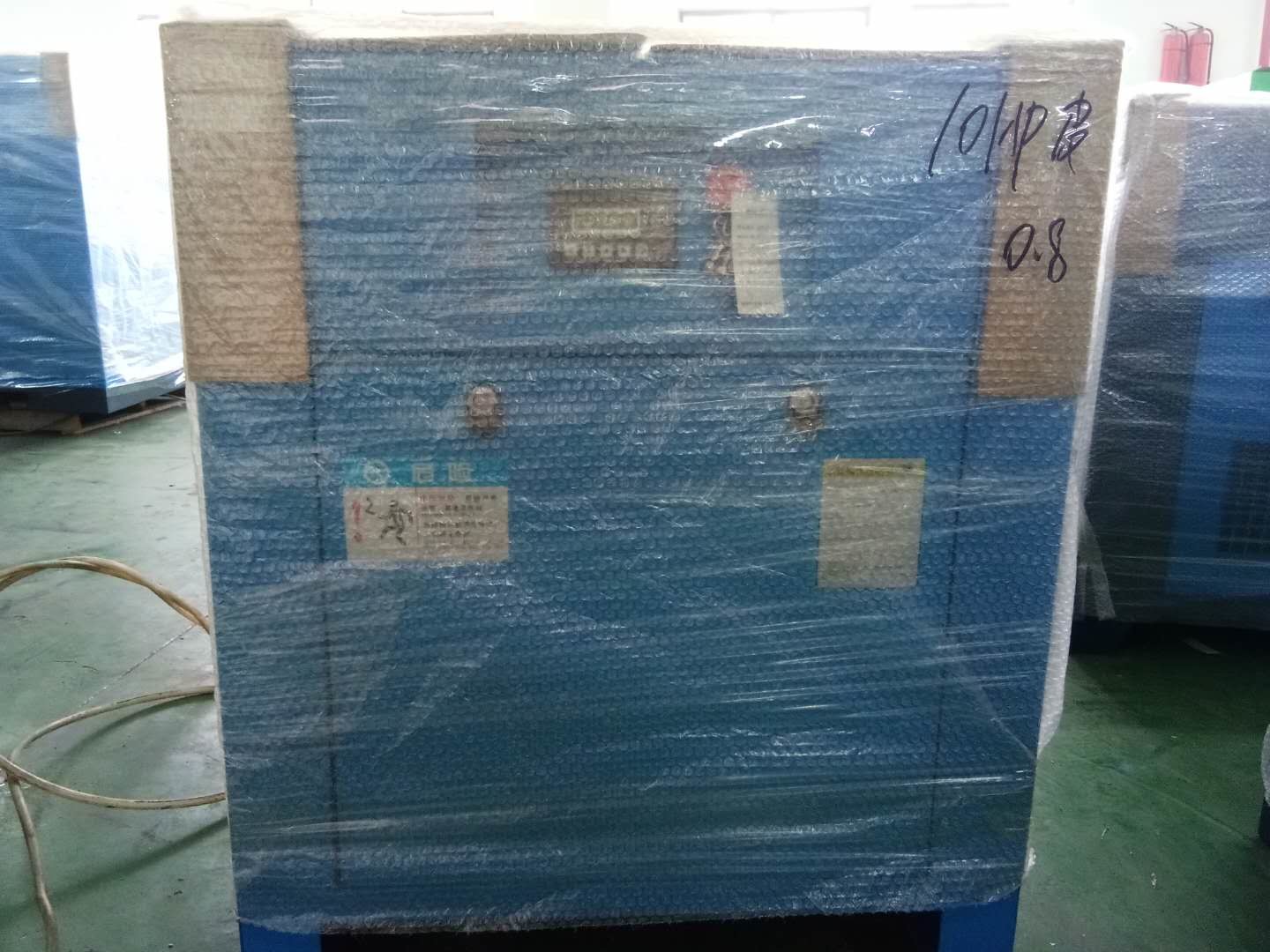

Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
1.Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
2. What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
3. How long does delivery take?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
4. Is OEM acceptable?
A:Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
